Ansible Tool Configuration Guide
Preface
This document provides a detailed guide on deploying and configuring the Ansible automation tool.
Target Audience
This manual is primarily intended for the following engineers:
• Solution planners and implementers
• Network administrators responsible for network configuration and maintenance
• Test personnel
Relevant personnel should possess the following competencies:
• Familiarity with Asterfusion PacketBroker network switch products
• Understanding of relevant computer networking principles
Applicable Hardware Models
Standard Products

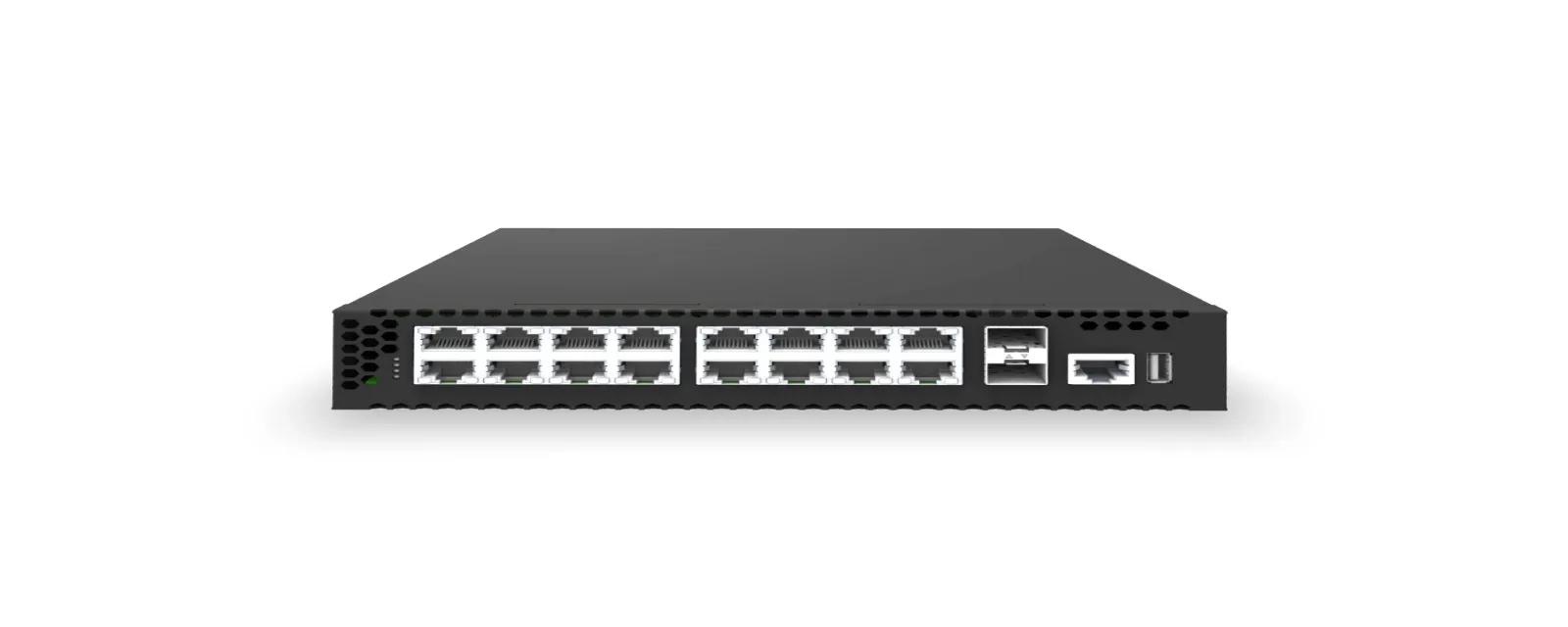

16x1G RJ45 PoE+@150W 3 Access Switch, 2x10Gb SFP+ Uplinks, Enterprise SONiC Distribution

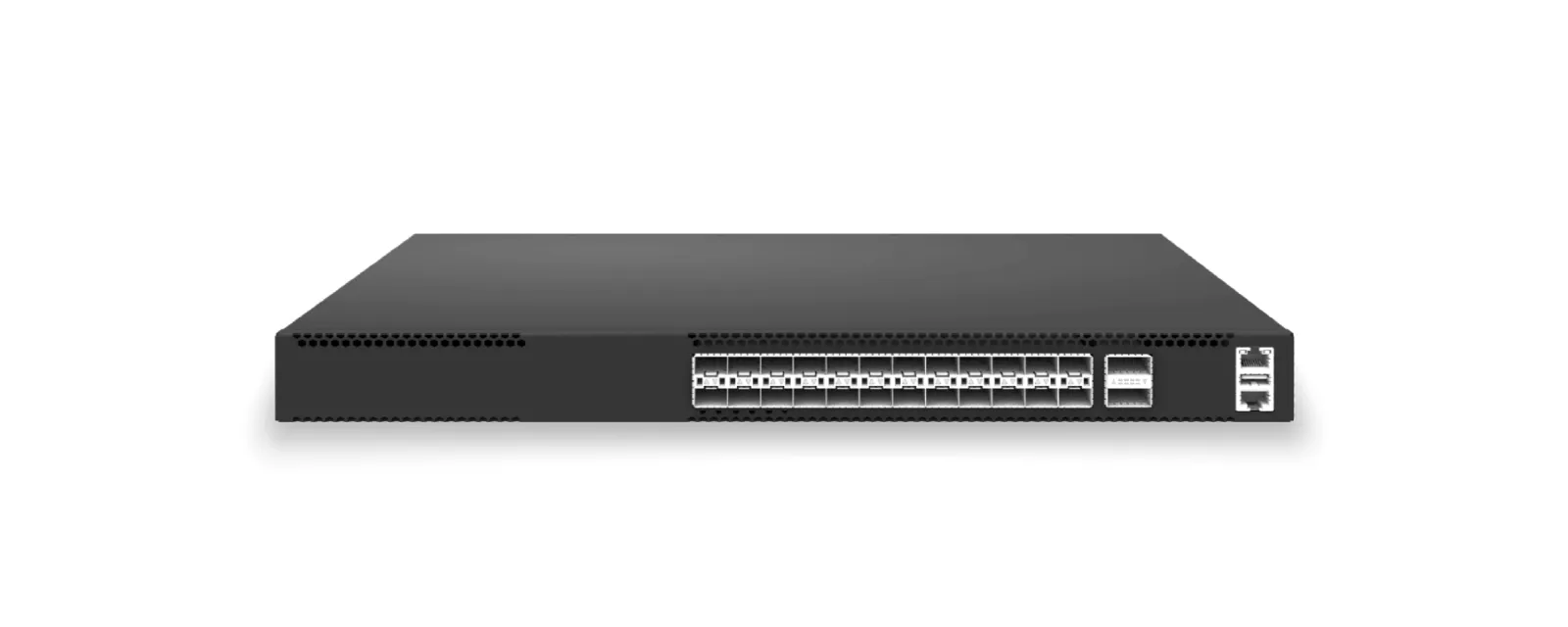

24 x 25Gb SFP28/ 10Gb SFP+, 2x 100Gb QSFP28 Uplinks, L3 Core/Leaf Switch, Marvell Aldrin3 Chip

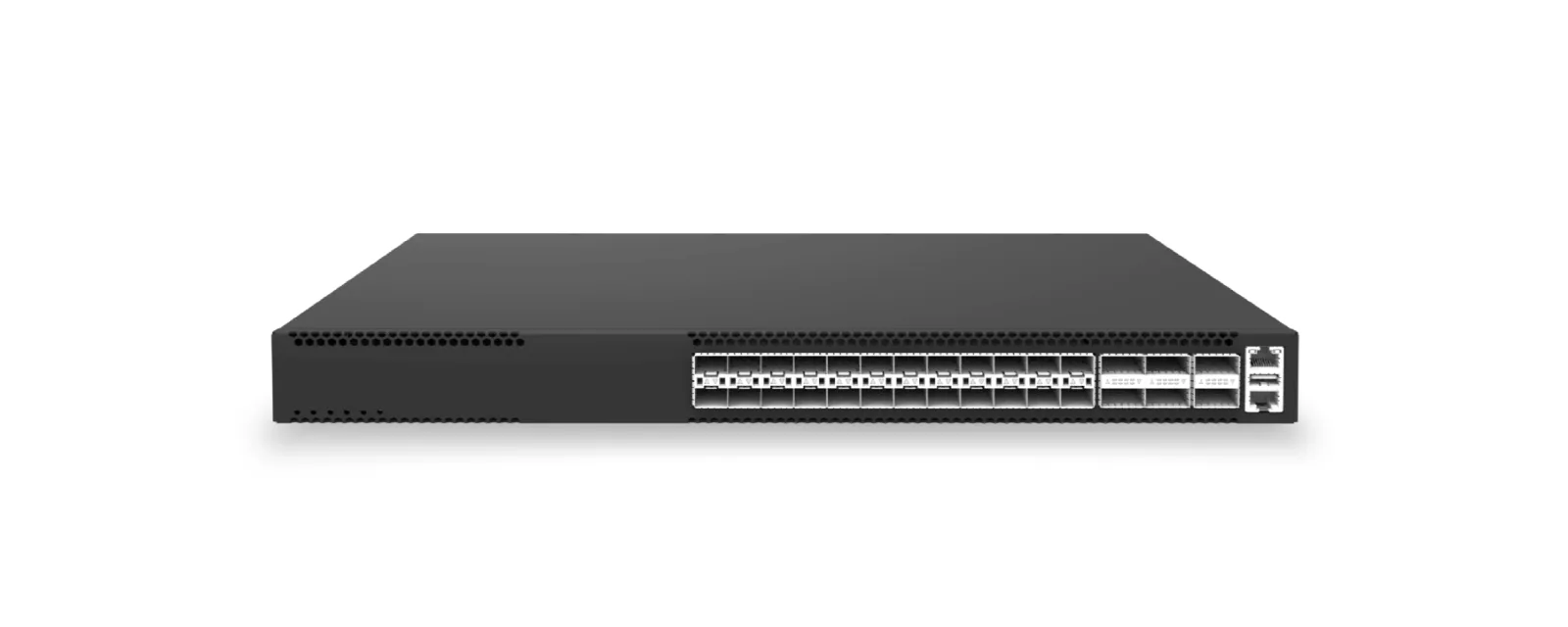

24x10G SFP+ L3 Leaf & Core switch, 6 x 100G QSFP28 /40G QSFP+ Uplinks, SONiC NOS, Marvell Prestera Aldrin2 Chip

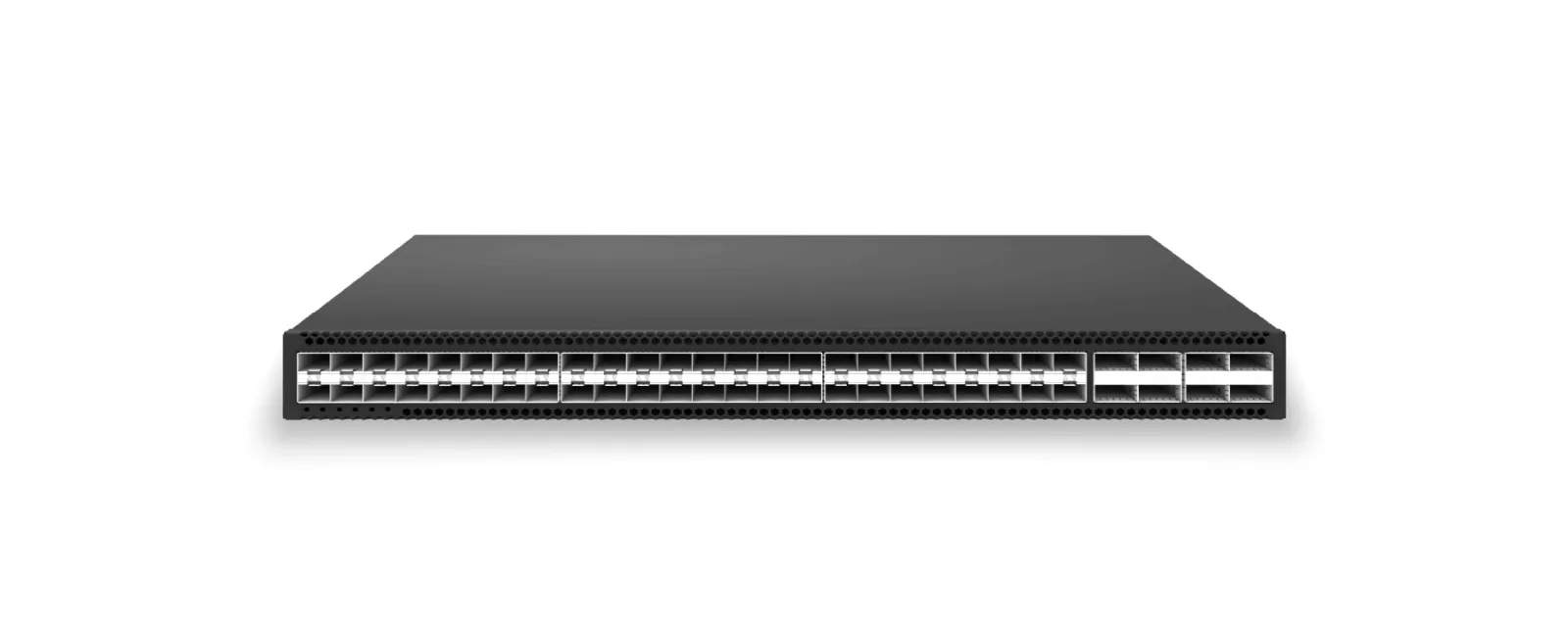

48x 10Gb SFP+, 6x 100Gb QSFP28/40Gb QSFP+ L3 Leaf Core Switch, Enterprise SONiC, Marvell Prestera Aldrin2 Chip

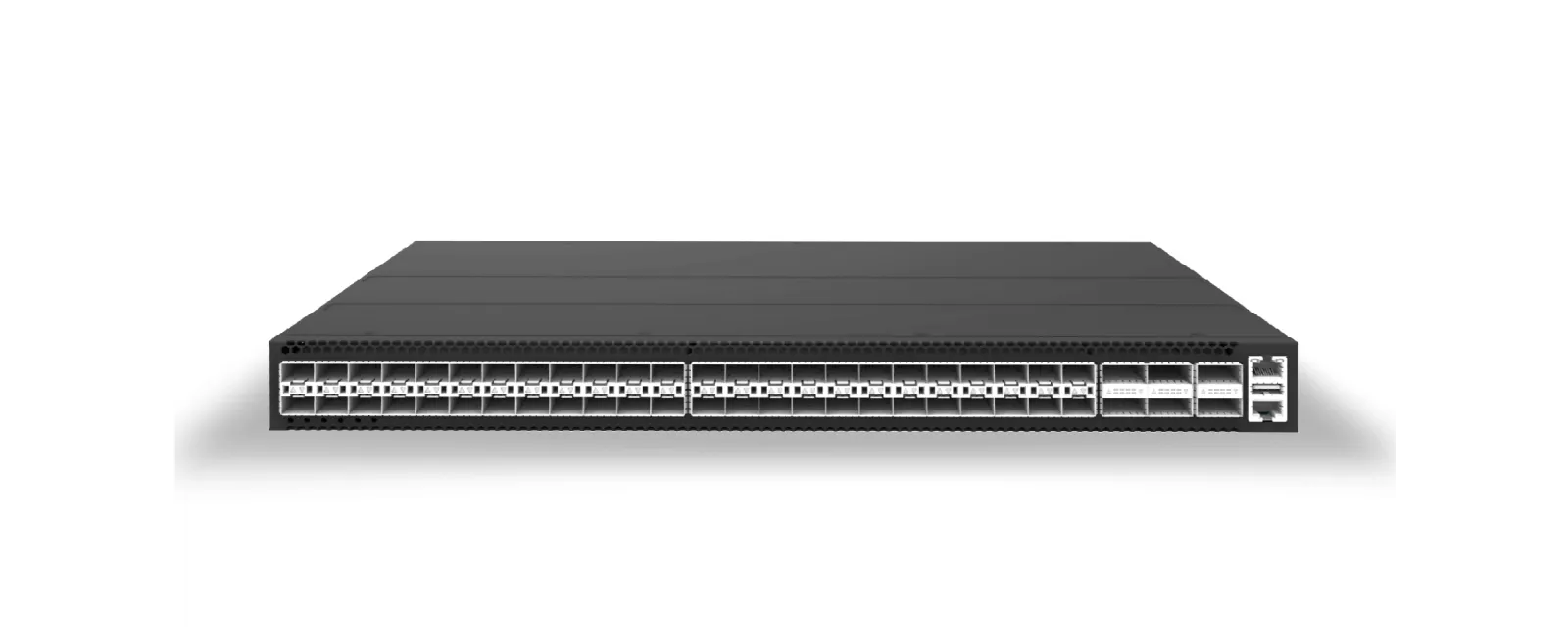

48-port 25Gb SFP28 Switch with 6x100G Uplink, Enterprise SONiC, Marvell Falcon + OCTEON 10 CN103

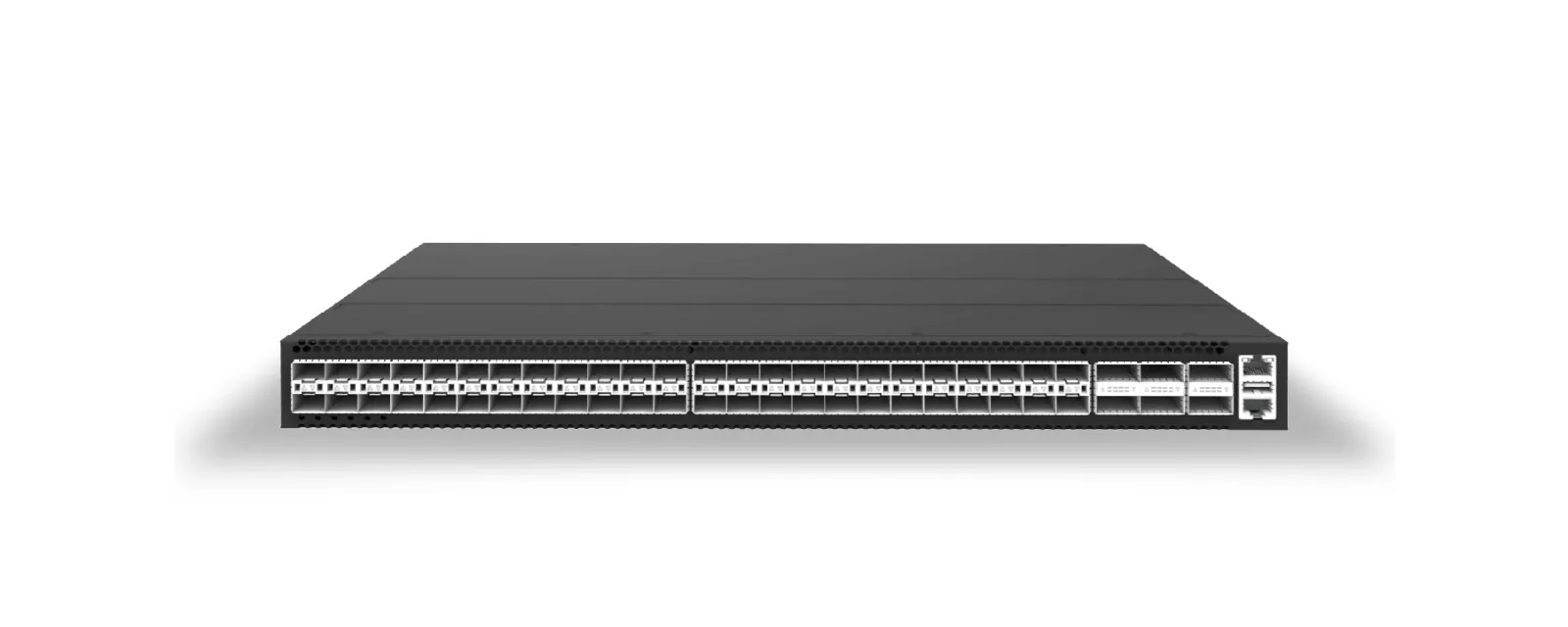

48x25Gb SFP28, 8x100Gb QSFP28 L3 Core/Spine Switch, Enterprise SONiC Ready, Marvell Falcon

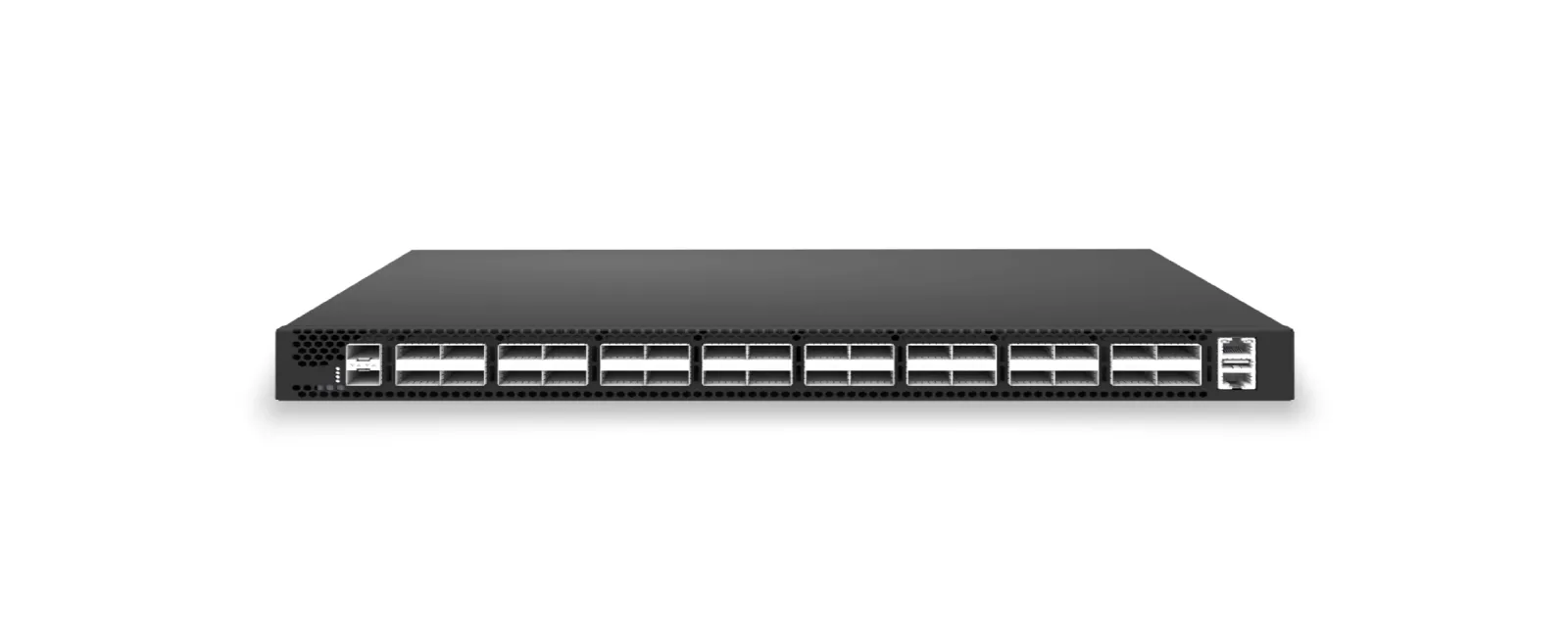

32x100Gb QSFP28 Spine and Core Switch Enterprise SONiC Ready Marvell Falcon

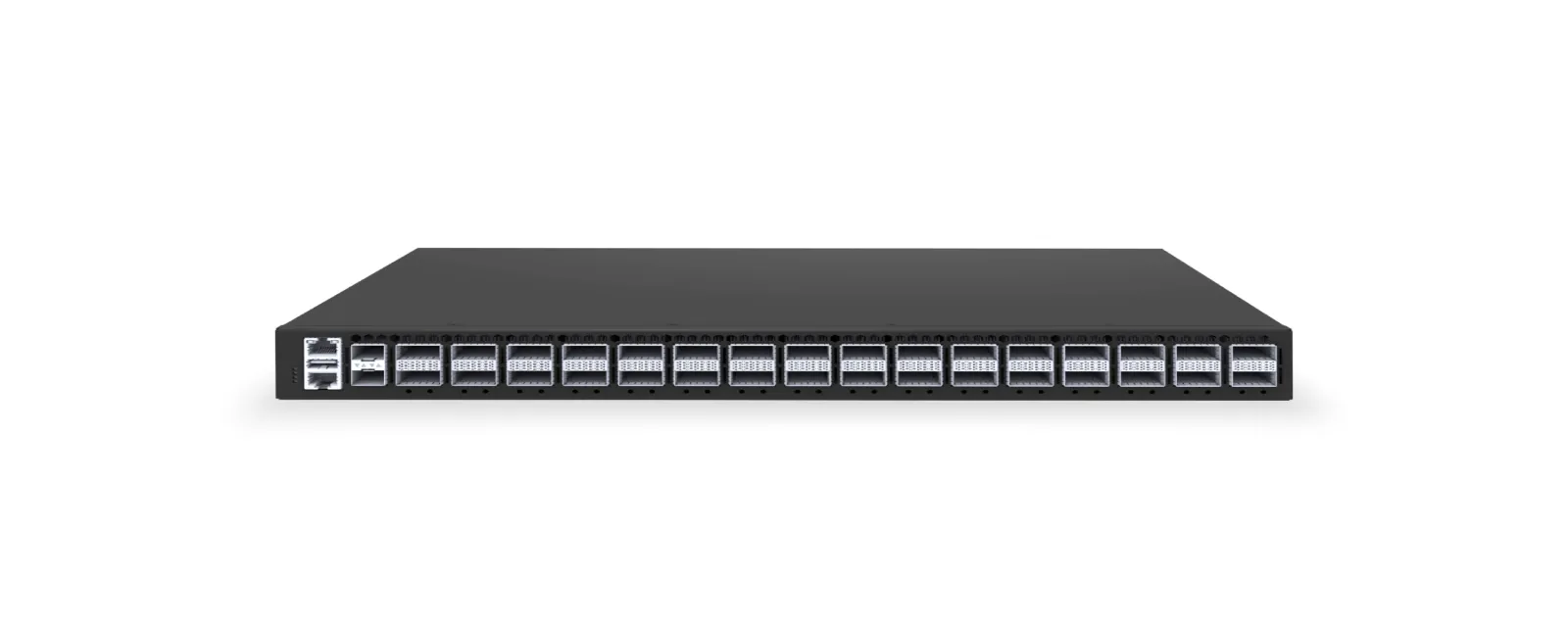

32-port 400 GbE QSFP-DD L3 Spine/Core Switch, Enterprise SONiC Ready, Marvell Falcon
Environment Deployment
Ansible is an automation tool that can configure devices by invoking sonic-cli. Configuration synchronization between the command line, controller, and WEB UI can be guaranteed when the command-line format meets the requirements.
Deploy Ansible on the server
This section uses Rocky Linux 9.6 (Blue Onyx) running on a virtual machine as an example.
- Install ansible
pip3 install ansible- The required files are as follows. You may directly edit the files or extract the attachments. The relevant file structure is as follows:
eric@mypc:\~\$ tree
.
├── ansible.cfg
├── group_vars
│ └── sonic.yml
├── host_vars
│ └── sonic1.yml
├── inventory
├── library
│ └── sonic_klish.py
└── site.yml3. ansible.cfg Specify the device information file as inventory
[defaults]
inventory = inventory
host_key_checking = False
retry_files_enabled = False
gathering = explicit
stdout_callback = yaml- inventory Specify the IP address, username, and password of the remote device.
[sonic]
sonic1 ansible_host=192.168.1.103 ansible_user=admin ansible_password=asteros5. group_vars/sonic.yml No changes needed.
# group_vars/sonic.yml
host: "{{ ansible_host }}"
user: "{{ ansible_user }}"
password: "{{ ansible_password }}"- In host_vars/sonic1.yml, two sets of command-line configurations to be deployed are as follows:
config_vlan_cmd: |
configure
vlan 3003
end
exit
config_acl_test_cmd: |
configure
access-list L3 test1 ingress priority 500000
rule 1 packet-action permit redirect-action ethernet 11
exit
interface ethernet 11
acl test1
end
exit- library/sonic_klish.py No changes needed; simply call the CLI command.
#!/usr/bin/env python3
import tempfile, subprocess, os
from ansible.module_utils.basic import AnsibleModule
def main():
mod = AnsibleModule(
argument_spec=dict(commands=dict(required=True, type='str'),
host=dict(required=True, type='str'),
user=dict(required=True, type='str'),
password=dict(required=True, type='str', no_log=True)),
supports_check_mode=False
)
cmds = mod.params['commands']
host = mod.params.get('host')
user = mod.params.get('user')
passwd = mod.params.get('password')
tmpfile = tempfile.mktemp()
with open(tmpfile, 'w') as f:
f.write(cmds)
ssh_opts = "-o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null"
try:
cp = ["sshpass", "-p", passwd, "scp"] + ssh_opts.split() + [tmpfile, "{}@{}:/tmp/klish.cmds".format(user, host)]
subprocess.check_call(cp, stdout=subprocess.DEVNULL)
exe = ["sshpass", "-p", passwd, "ssh"] + ssh_opts.split() + \
["{}@{}".format(user, host), "sonic-cli", "<", "/tmp/klish.cmds"]
out = subprocess.check_output(exe, stderr=subprocess.STDOUT)
except subprocess.CalledProcessError as e:
mod.fail_json(msg=e.output)
finally:
os.unlink(tmpfile)
mod.exit_json(changed=True, stdout=out)
if __name__ == '__main__':
main()
- Set up the test case by adding two new tasks that call config_acl_test_cmd and config_vlan_cmd respectively.
- hosts: sonic
gather_facts: no
tasks:
- name: Push klish commands
sonic_klish:
commands: "{{ config_acl_test_cmd }}"
host: "{{ host }}"
user: "{{ user }}"
password: "{{ password }}"
delegate_to: localhost
register: result
- name: Push klish commands 1
sonic_klish:
commands: "{{ config_vlan_cmd }}"
host: "{{ host }}"
user: "{{ user }}"
password: "{{ password }}"
delegate_to: localhost
register: result
- debug: var=result.stdout
- Use Case Execution
[root@localhost ansible]# ansible-playbook -v site.yml
Using /home/ryan/ansible/ansible.cfg as config file
PLAY [sonic] ******************************************************************************************************************************************************************************************************
TASK [Push klish commands] ****************************************************************************************************************************************************************************************
changed: [sonic1 -> localhost] => changed=true
stdout: |-
Warning: Permanently added '192.168.1.102' (RSA) to the list of known hosts.
...Entering cli view, please wait...
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
sonic# configure
sonic(config)# access-list L3 test1 ingress priority 500000
sonic(config-L3-acl-test1)# rule 1 packet-action permit redirect-action ethernet 13
sonic(config-L3-acl-test1)# exit
sonic(config)# interface ethernet 13
sonic(config-if-13)# acl test1
sonic(config-if-13)# end
sonic# exit
stdout_lines: <omitted>
TASK [debug] ******************************************************************************************************************************************************************************************************
ok: [sonic1] =>
result.stdout: |-
Warning: Permanently added '192.168.1.102' (RSA) to the list of known hosts.
...Entering cli view, please wait...
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
sonic# configure
sonic(config)# access-list L3 test1 ingress priority 500000
sonic(config-L3-acl-test1)# rule 1 packet-action permit redirect-action ethernet 13
sonic(config-L3-acl-test1)# exit
sonic(config)# interface ethernet 13
sonic(config-if-13)# acl test1
sonic(config-if-13)# end
sonic# exit
TASK [Push klish commands] ****************************************************************************************************************************************************************************************
changed: [sonic1 -> localhost] => changed=true
stdout: |-
Warning: Permanently added '192.168.1.102' (RSA) to the list of known hosts.
...Entering cli view, please wait...
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
sonic# configure
sonic(config)# vlan 3003
sonic(config-vlan-3003)# end
sonic# exit
stdout_lines: <omitted>
TASK [debug] ******************************************************************************************************************************************************************************************************
ok: [sonic1] =>
result.stdout: |-
Warning: Permanently added '192.168.1.102' (RSA) to the list of known hosts.
...Entering cli view, please wait...
stty: 'standard input': Inappropriate ioctl for device
stty: 'standard input': Inappropriate ioctl for device
sonic# configure
sonic(config)# vlan 3003
sonic(config-vlan-3003)# end
sonic# exit
PLAY RECAP ********************************************************************************************************************************************************************************************************
sonic1 : ok=4 changed=2 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
