Push Configuration

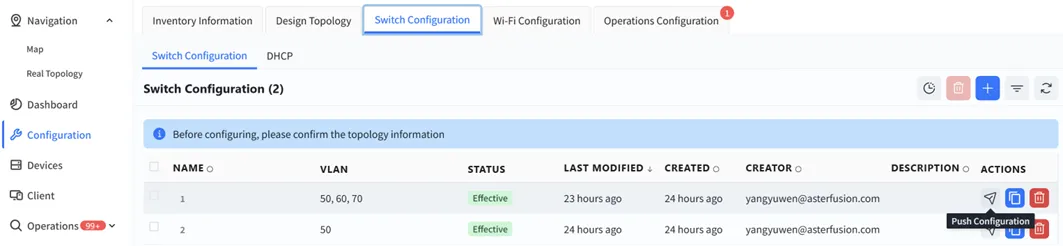

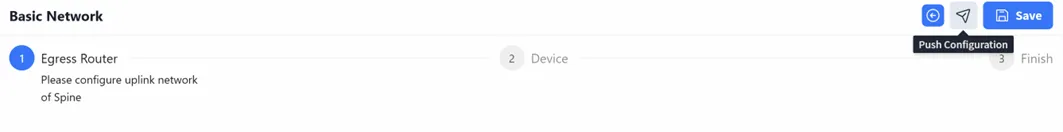

\<font color="#1d50a2">switch\</font> switches support both in band and out of band management methods operation and maintenance personnel can flexibly choose based on current network conditions for devices in the factory default state, whenever either the management port or service port is in an "up" state, they will actively initiate a dhcp request to obtain a temporary management ip address and the ip address of the cloud based controller from the dhcp server they will then connect to the controller to retrieve configuration information once all switches are successfully connected to the controller, click \[topology consistency verification] on the upper right side of the \[design topology] view to confirm whether the generated topology matches the planned topology after verification, the controller can deploy configurations to the switches 1 click \[configuration] \[design topology] \[basic network] \[push configuration] to issue the basic configuration for all devices by default, the controller will select all switches click the \[next] \[start] button to start issuing basic network configurations for the switches 2 click \[configuration] \[switch configuration] \[push configuration] to issue a configuration for the device 3 on the \[configuration] \[switch configuration] \[dhcp] interface, select the configuration to be deployed and click the \[push configuration] button to deliver the configuration \<font color="#1d50a2">ap\</font> the ap does not need to manually issue the configuration after the configuration of the device is issued and takes effect, the poe power supply function of the switch is turned on, and the ap can power on and work when the ap connects to the controller with the information obtained through the dhcp service, the controller will automatically send the configuration to the corresponding ap based on the comparison between the tag identification stored in the ap inventory and the tag identification in the planning configuration \<font color="#1d50a2">olt stick\</font> olt stick will automatically complete the distribution directly when saving the configuration, without the need to push the configuration again
